计算机图像学的部分图形及其代码(opengl/C language)

该文章创建(更新)于04/4/2020,请注意文章的时效性!

缘由

自己最近学校开课程有一门计算机图形学,感觉快被其搞疯了,自己电脑扔学校里了,老家这老机器带不动程序,随时崩溃!有时候运行卡了半个小时没反应了,然后重启,自己就在这循环中没了耐性!头疼!感觉如果继续这种状态,这学期估计费了!自己测试并成功运行了几个小代码,有感兴趣的拿走不谢!

RrFflV3waWK2osx

#include <GL/glut.h>
#include <math.h>
#define PI 3.14159265358979323846

void init()
{
    glClearColor(1.0f,1.0f,1.0f,1.0f);
}

void display(void)
{
    GLfloat a=0.25;
    glClear(GL_COLOR_BUFFER_BIT);
    glColor3f(1.0f,0.0f,0.0f);
    glBegin(GL_POLYGON);
        for(GLfloat t=0;t<2*PI;t+=0.01)
        {
            GLfloat x=a*(2*sin(t)-sin(2*t)),y=a*(2*cos(t)-cos(2*t));
            glVertex2f(x,y);
        }
    glEnd();
    glFlush();
}

int main(int argc, char** argv)
{
    glutInit(&argc,argv);
    glutInitDisplayMode(GLUT_SINGLE|GLUT_RGB|GLUT_DEPTH);
    glutInitWindowSize(300,300);
    glutInitWindowPosition(300,300);
    glutCreateWindow("Heart");
    init();
    glutDisplayFunc(display);
    glutMainLoop();
    return 0;
}

彩色立法体

KJIodO9kA5qMw28

#include<GL/glut.h>
/*  颜色立方体 */

//旋转角度
static GLfloat xRot = 0.0f;
static GLfloat yRot = 0.0f;

//渲染回调函数
void RenderScene(void)
 {
 //清除缓冲区
 glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

 //保存矩阵
 glPushMatrix();

 //旋转
 glRotatef(xRot, 1.0f, 0.0f, 0.0f);
    glRotatef(yRot, 0.0f, 1.0f, 0.0f);

 //画六个面
 glBegin(GL_QUADS);
  // 前
  // 白色
  glColor3ub((GLubyte) 255, (GLubyte)255, (GLubyte)255);
        glVertex3f(50.0f,50.0f,50.0f);

  // 黄色
  glColor3ub((GLubyte) 255, (GLubyte)255, (GLubyte)0);
  glVertex3f(50.0f,-50.0f,50.0f);

  // 红色
  glColor3ub((GLubyte) 255, (GLubyte)0, (GLubyte)0);
        glVertex3f(-50.0f,-50.0f,50.0f);

        // 品红
        glColor3ub((GLubyte) 255, (GLubyte)0, (GLubyte)255);
        glVertex3f(-50.0f,50.0f,50.0f);

 // 后
  // 蓝绿
  glColor3f(0.0f, 1.0f, 1.0f);
        glVertex3f(50.0f,50.0f,-50.0f);

        // 绿色
        glColor3f(0.0f, 1.0f, 0.0f);
        glVertex3f(50.0f,-50.0f,-50.0f);

        // 黑色
        glColor3f(0.0f, 0.0f, 0.0f);
        glVertex3f(-50.0f,-50.0f,-50.0f);

  // 蓝色
  glColor3f(0.0f, 0.0f, 1.0f);
        glVertex3f(-50.0f,50.0f,-50.0f);

 // 顶面
  // 蓝绿
        glColor3f(0.0f, 1.0f, 1.0f);
        glVertex3f(50.0f,50.0f,-50.0f);

  // 白色
  glColor3f(1.0f, 1.0f, 1.0f);
  glVertex3f(50.0f,50.0f,50.0f);

  // 品红
  glColor3f(1.0f, 0.0f, 1.0f);
        glVertex3f(-50.0f,50.0f,50.0f);

  // 蓝色
  glColor3f(0.0f, 0.0f, 1.0f);
        glVertex3f(-50.0f,50.0f,-50.0f);

 // 底面
  // 绿色
  glColor3f(0.0f, 1.0f, 0.0f);
  glVertex3f(50.0f,-50.0f,-50.0f);

  // 黄色
  glColor3f(1.0f, 1.0f, 0.0f);
  glVertex3f(50.0f,-50.0f,50.0f);

  // 红色
  glColor3f(1.0f, 0.0f, 0.0f);
  glVertex3f(-50.0f,-50.0f,50.0f);

  // 黑色
  glColor3f(0.0f, 0.0f, 0.0f);
  glVertex3f(-50.0f,-50.0f,-50.0f);

 // 左面
  // 白色
  glColor3f(1.0f, 1.0f, 1.0f);
  glVertex3f(50.0f,50.0f,50.0f);

  // 蓝绿色
  glColor3f(0.0f, 1.0f, 1.0f);
  glVertex3f(50.0f,50.0f,-50.0f);

  // 滤色
  glColor3f(0.0f, 1.0f, 0.0f);
  glVertex3f(50.0f,-50.0f,-50.0f);

  // 黄色
  glColor3f(1.0f, 1.0f, 0.0f);
  glVertex3f(50.0f,-50.0f,50.0f);

 // 右面
  // 品红
  glColor3f(1.0f, 0.0f, 1.0f);
  glVertex3f(-50.0f,50.0f,50.0f);

  // 蓝色
        glColor3f(0.0f, 0.0f, 1.0f);
        glVertex3f(-50.0f,50.0f,-50.0f);

  // 黑色
  glColor3f(0.0f, 0.0f, 0.0f);
  glVertex3f(-50.0f,-50.0f,-50.0f);

  // 红色
  glColor3f(1.0f, 0.0f, 0.0f);
        glVertex3f(-50.0f,-50.0f,50.0f);
    glEnd();

    glPopMatrix();

 glutSwapBuffers();
 }

void SetupRC()
 {
 glClearColor(0.0f, 0.0f, 0.0f, 1.0f );

 glEnable(GL_DEPTH_TEST);
 glEnable(GL_DITHER);
 glShadeModel(GL_SMOOTH);
 }

/////////////////////////////////////////////////
void SpecialKeys(int key, int x, int y)
 {
 if(key == GLUT_KEY_UP)
  xRot-= 5.0f;

 if(key == GLUT_KEY_DOWN)
  xRot += 5.0f;

 if(key == GLUT_KEY_LEFT)
  yRot -= 5.0f;

 if(key == GLUT_KEY_RIGHT)
  yRot += 5.0f;

    if(key > 356.0f)
        xRot = 0.0f;

    if(key < -1.0f)
        xRot = 355.0f;

    if(key > 356.0f)
        yRot = 0.0f;

    if(key < -1.0f)
        yRot = 355.0f;

    // Refresh the Window
    glutPostRedisplay();
    }

void ChangeSize(int w, int h)
    {
    GLfloat fAspect;

 if(h == 0)
  h = 1;

 glViewport(0, 0, w, h);

 glMatrixMode(GL_PROJECTION);
 glLoadIdentity();

 fAspect = (GLfloat)w / (GLfloat)h;
 gluPerspective(35.0f, fAspect, 1.0f, 1000.0f);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    glTranslatef(0.0f, 0.0f, -400.0f);
    }

int main(int argc, char* argv[])
 {
 glutInit(&argc, argv);
 glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB | GLUT_DEPTH);
 glutInitWindowSize(800,600);
        glutCreateWindow("RGB Cube");
 glutReshapeFunc(ChangeSize);
 glutSpecialFunc(SpecialKeys);
 glutDisplayFunc(RenderScene);
 SetupRC();
 glutMainLoop();

 return 0;
 }

六角形(星)

IwW6R9G4AelZkpO

#include <GL/glut.h>
void drawstar(const GLfloat cx, const GLfloat cy, GLfloat angle)
{

    const GLfloat point[2][12] =
    {
        { 0, 0.1, 0.4, 0.25, 0.4, 0.1, 0,-0.1, -0.4, -0.25, -0.4, -0.1 },
        { 0.5, 0.3, 0.3, 0, -0.3, -0.3, -0.5, -0.3, -0.3, 0, 0.3, 0.3 }
    };

    //确定每个点的颜色
    GLfloat Color[3][12] = { 0 };

    //六角星绘制
    glBegin(GL_TRIANGLE_FAN); //开始绘制
    {
        glColor3f(1, 1, 1);
        glVertex2f(0, 0); //中心点

        for (int i = 0; i < 12; i++)
        {
            glVertex2f(point[0][i], point[1][i]);//顶点
        }
        glVertex2f(point[0][0], point[1][0]);
    }
    glEnd();
}

void display()
{
    glClearColor(0, 0, 0, 1.0);
    glClear(GL_COLOR_BUFFER_BIT);
    drawstar(0, 0, 0);

    glFlush();
    glutSwapBuffers();          //交换两个缓冲区指针

}

int main(int argc, char *argv[])
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE);
    glutInitWindowPosition(10, 10);
    glutInitWindowSize(400, 400);
    glutCreateWindow("SixStarGRB");
    glutDisplayFunc(display);

    glutMainLoop();   //注册绘制回调函数
    return 0;
}

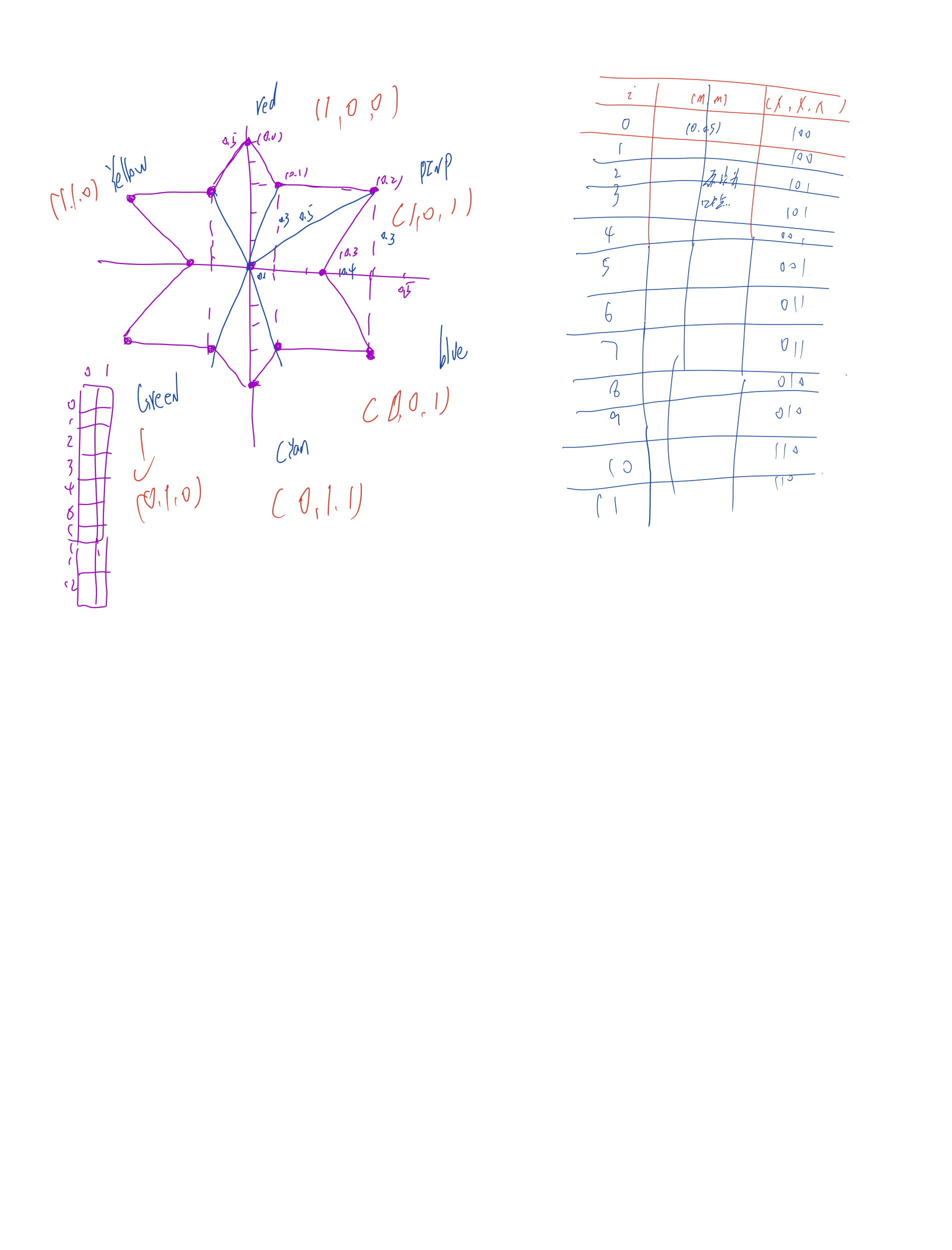

六角形(星)算法

iHKGWlFA3qfwV6e

彩色六角形(星)

1NEoav2hbPXxGjT

#include <GL/glut.h>
void drawstar()
{
    //确定每个点的坐标
    //(0,0.5),(0.1,0.3),.....,(-0.1,0.3)
    const GLfloat point[2][12] =
    {
        { 0, 0.1, 0.4, 0.25, 0.4, 0.1, 0,-0.1, -0.4, -0.25, -0.4, -0.1 },
        { 0.5, 0.3, 0.3, 0, -0.3, -0.3, -0.5, -0.3, -0.3, 0, 0.3, 0.3 }
    };

    //确定每个点的颜色
    //最终会由得到的数字对应于12个顶点6种颜色的x,y,z对应的取值
    GLfloat Color[3][12] = { 0 };
    for (int i = 0; i < 12; i++)
    {
        if (i <= 3 || i >= 10)
            Color[0][i] = 1;    // x = 0 1 2 3 10 11
        if (i >= 6 && i <= 11)
            Color[1][i] = 1;     // y = 6 7 8 9 10 11
        if (i >= 2 && i <= 7)
            Color[2][i] = 1;    // z = 2 3 4 5 6 7
    }

    //六角星绘制
    glBegin(GL_TRIANGLE_FAN); //开始绘制
    {
        glColor3f(1, 1, 1);
        glVertex2f(0, 0); //中心点

        for (int i = 0; i < 12; i++)
        {
            glColor3f(Color[0][i], Color[1][i], Color[2][i]);//选择对应顶点颜色
            glVertex2f(point[0][i], point[1][i]);//依次会得到12个顶点的坐标值
        }

        glColor3f(Color[0][0], Color[1][0], Color[2][0]);
        glVertex2f(point[0][0], point[1][0]);
    }
    glEnd();

}

void display()
{
    glClearColor(0, 0, 0, 1.0);
    glClear(GL_COLOR_BUFFER_BIT);
    drawstar(0, 0, 0);
    glFlush();
    glutSwapBuffers();          //交换两个缓冲区指针
}

int main(int argc, char *argv[])
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE);
    glutInitWindowPosition(100, 100);
    glutInitWindowSize(500, 500);
    glutCreateWindow("SixStarGRB");
    glutDisplayFunc(display);
    glutMainLoop();   //注册绘制回调函数
    return 0;
}

旋转的彩色六角形(星)

GUxXsjBNSvR4qbI

#include <GL/glut.h>
#include<math.h>
#include<cstdio>
/* 输入:中心坐标(cx,cy),旋转角度 angle(顺时针) */
void drawstar(const GLfloat cx, const GLfloat cy, GLfloat angle)
{
   glTranslatef(cx, cy, 0);
   glRotatef(angle, 0, 0, -1);   //顺时针旋转

    //确定每个点的坐标
    const GLfloat point[2][12] =
    {
        { 0, 0.01, 0.04, 0.025, 0.04, 0.01, 0,-0.01, -0.04, -0.025, -0.04, -0.01 },
        { 0.05, 0.03, 0.03, 0, -0.03, -0.03, -0.05, -0.03, -0.03, 0, 0.03, 0.03 }
    };

    //确定每个点的颜色
    GLfloat Color[3][12] = { 0 };

    for (int i = 0; i < 12; i++)
    {
        if (i <= 3 || i >= 10)
            Color[0][i] = 1;    // 0 1 2 3 10 11
        if (i >= 2 && i <= 7)
            Color[1][i] = 1;     // 2 3 4 5 6 7
        if (i >= 6 && i <= 11)
            Color[2][i] = 1;    // 6 7 8 9 10 11
    }

    //六角星绘制
    glBegin(GL_TRIANGLE_FAN); //开始绘制
    {
        glColor3f(1, 1, 1);
        glVertex2f(0, 0); //中心点

        for (int i = 0; i < 12; i++)
        {
            glColor3f(Color[0][i], Color[1][i], Color[2][i]);//选择颜色
            glVertex2f(point[0][i], point[1][i]);//顶点
        }
        glColor3f(Color[0][0], Color[1][0], Color[2][0]);
        glVertex2f(point[0][0], point[1][0]);
    }
    glEnd();
    glLoadIdentity();//重置当前的模型观察矩阵,该句执行完后,将焦点移动到了屏幕的中心
}

void display()
{
    glClearColor(0, 0, 0, 1.0);
    glClear(GL_COLOR_BUFFER_BIT);

/*
 *不清楚啥原因
 *感觉可能是机器精度有问题,sin和cos函数酸错了!
 */
    // int theta = 0;
    // float x,y;
    // while(theta < 270){
    //     x = 0.75*cos(theta);
    //     y = 0.75*sin(theta);
    //     // drawstar(x,y,theta);
    //     printf("%f,%fn",cos(theta),sin(theta));
    //     theta = theta + 90;
    //     printf("(%f,%f,%d)n",x,y,theta);
    // }

    // drawstar(-0.75,0,0);
    // drawstar(0,0.75,30);
    // drawstar(0.75,0,180);
    // drawstar(0,-0.75,270);

    drawstar(-0.75,0,0);
    drawstar(-0.65,0.375,30);
    drawstar(-0.375,0.65,60);
    drawstar(0,0.75,90);

    drawstar(0.375,0.65,120);
    drawstar(0.65,0.375,150);
    drawstar(0.75,0,180);

    drawstar(0.65,-0.375,210);
    drawstar(0.375,-0.65,240);
    drawstar(0,-0.75,270);

    drawstar(-0.375,-0.75,300);
    drawstar(-0.65,-0.375,330);

    glFlush();
    glutSwapBuffers();          //交换两个缓冲区指针

}

int main(int argc, char *argv[])
{
    glutInit(&argc, argv);
    glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE);
    glutInitWindowPosition(10, 10);
    glutInitWindowSize(500, 500);
    glutCreateWindow("SixStarRGBInCircle");
    glutDisplayFunc(display);
    glutMainLoop();   //注册绘制回调函数
    return 0;
}
